Setting up takes about 15 minutes. You need four things:
  • An EchoAuth AI Agent license key. Buy one in the shop if you don’t have one yet.
  • A Discord server where you can add bots and manage roles.
  • An OpenRouter API key. One OpenRouter key covers everything the agent needs: answers, screenshots and search.
  • Optionally, a docs site or some written documentation for the agent to answer from.
We host your agent and keep it running. You set it up from the dashboard at agent.echoauth.dev.
Recommended setup. Long-term testing was done with OpenRouter only, using these three models:Other providers (NVIDIA, OpenAI, Anthropic) are available in the dashboard, but this is the combination we’ve tested over time.

​
1. Create your account

1

Open the registration page

Go to agent.echoauth.dev/register.
2

Enter your license key

Paste the key from your purchase email. It looks like ECHO-XXXX-XXXX-XXXX-XXXX.
3

Choose a username and password

Your password needs at least 8 characters. Click Create account.

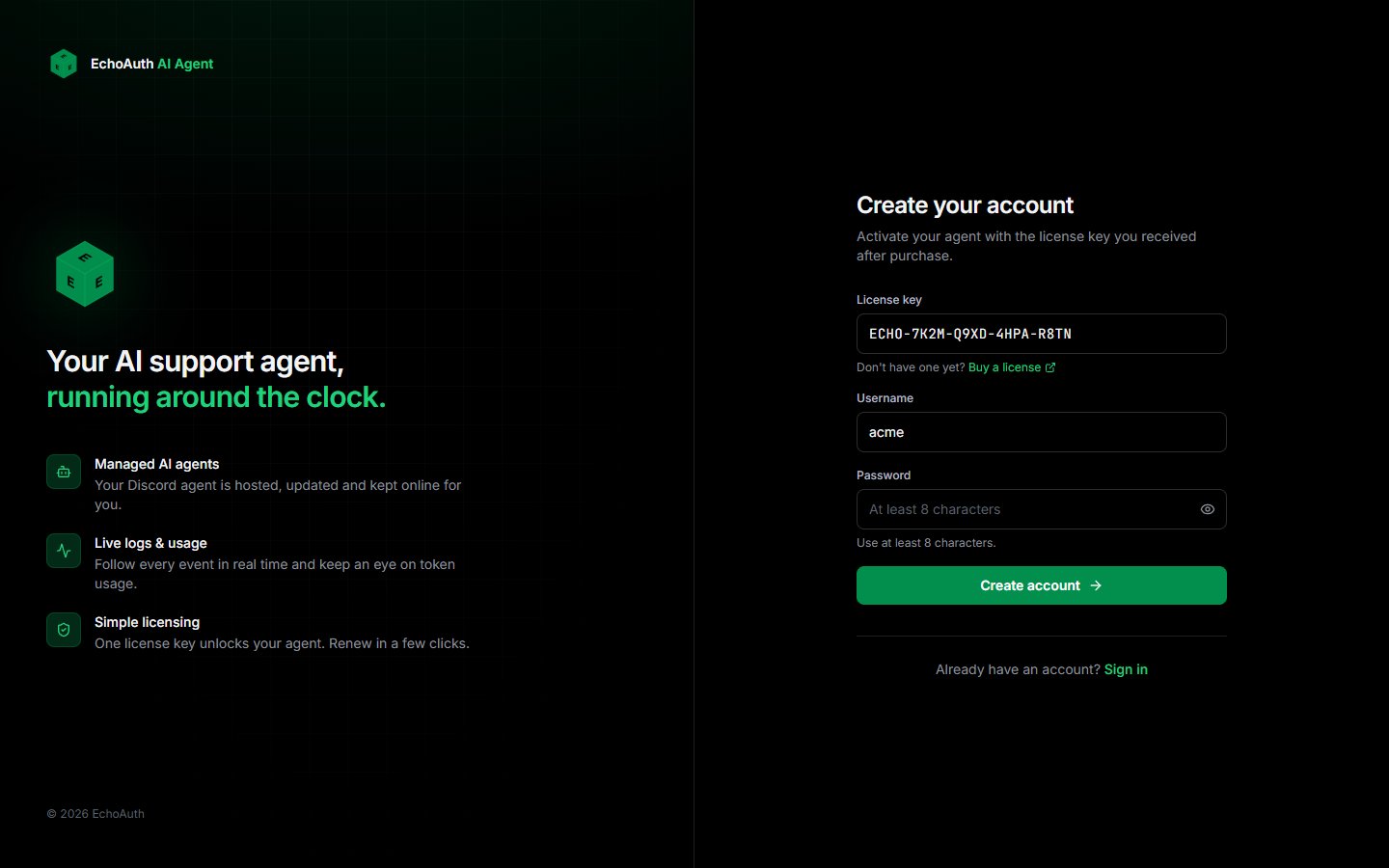

Registration form with license key, username and password fields

The registration page

Once your license is active, your agent is created for you. You land on the dashboard, where you’ll see the agent, your license and usage stats.

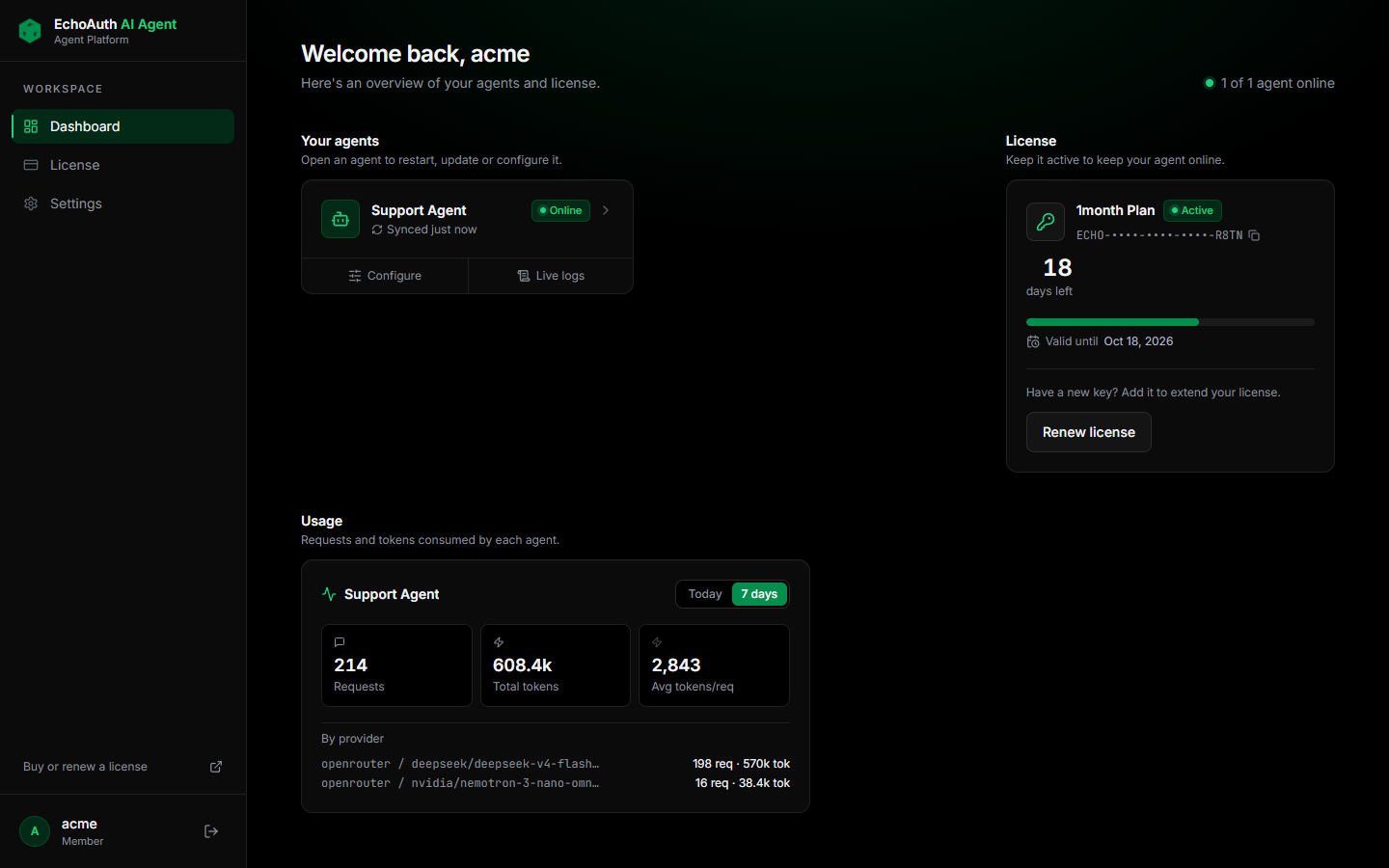

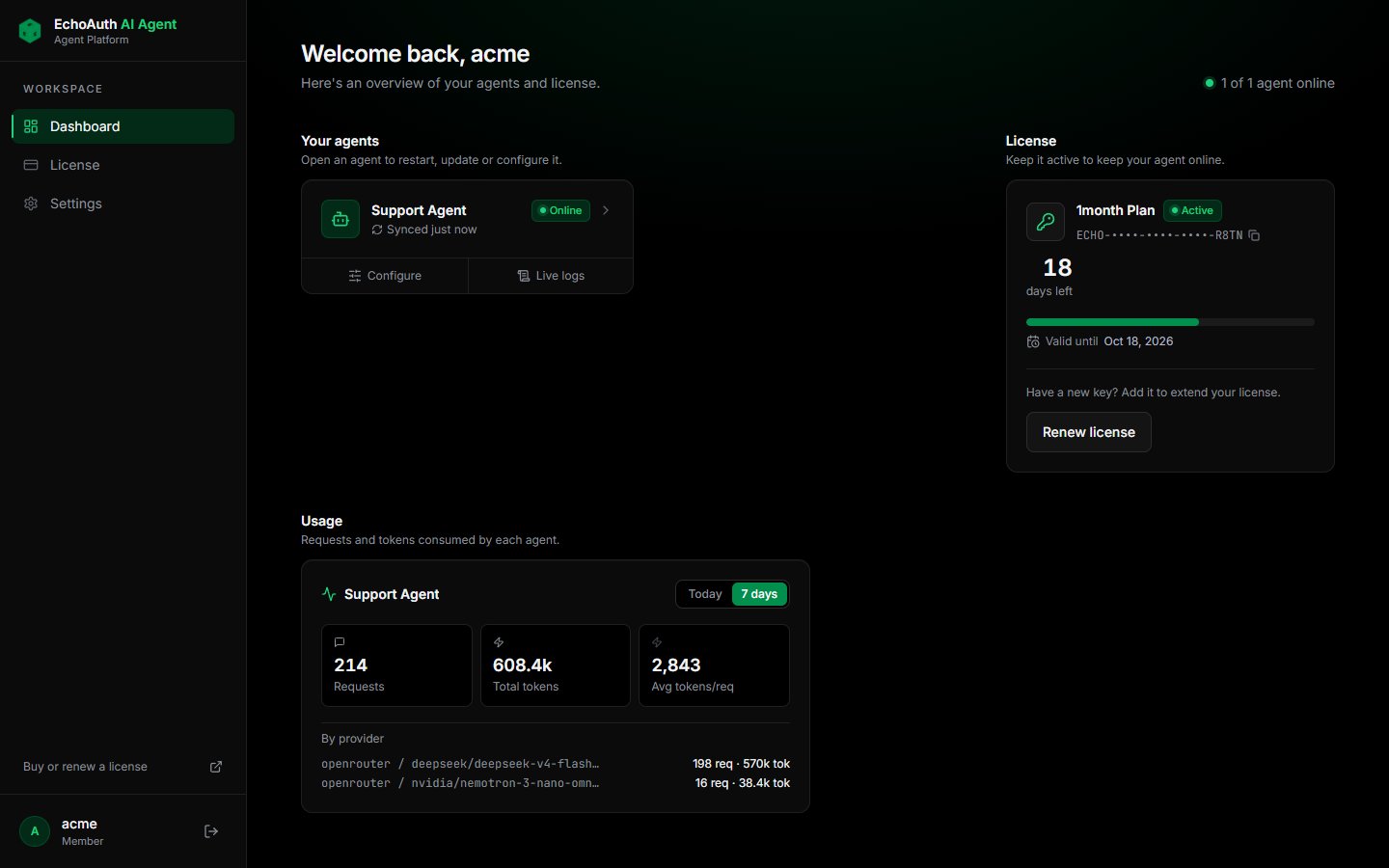

Dashboard showing one agent, license status and usage

The dashboard after signing in

If No agents yet is showing, open License in the sidebar and check that your license is active.
Click your agent to open its page. Everything else in this guide starts from here: Configure opens the settings, Live logs shows what the agent is doing, and Update Agent applies settings that need a redeploy.

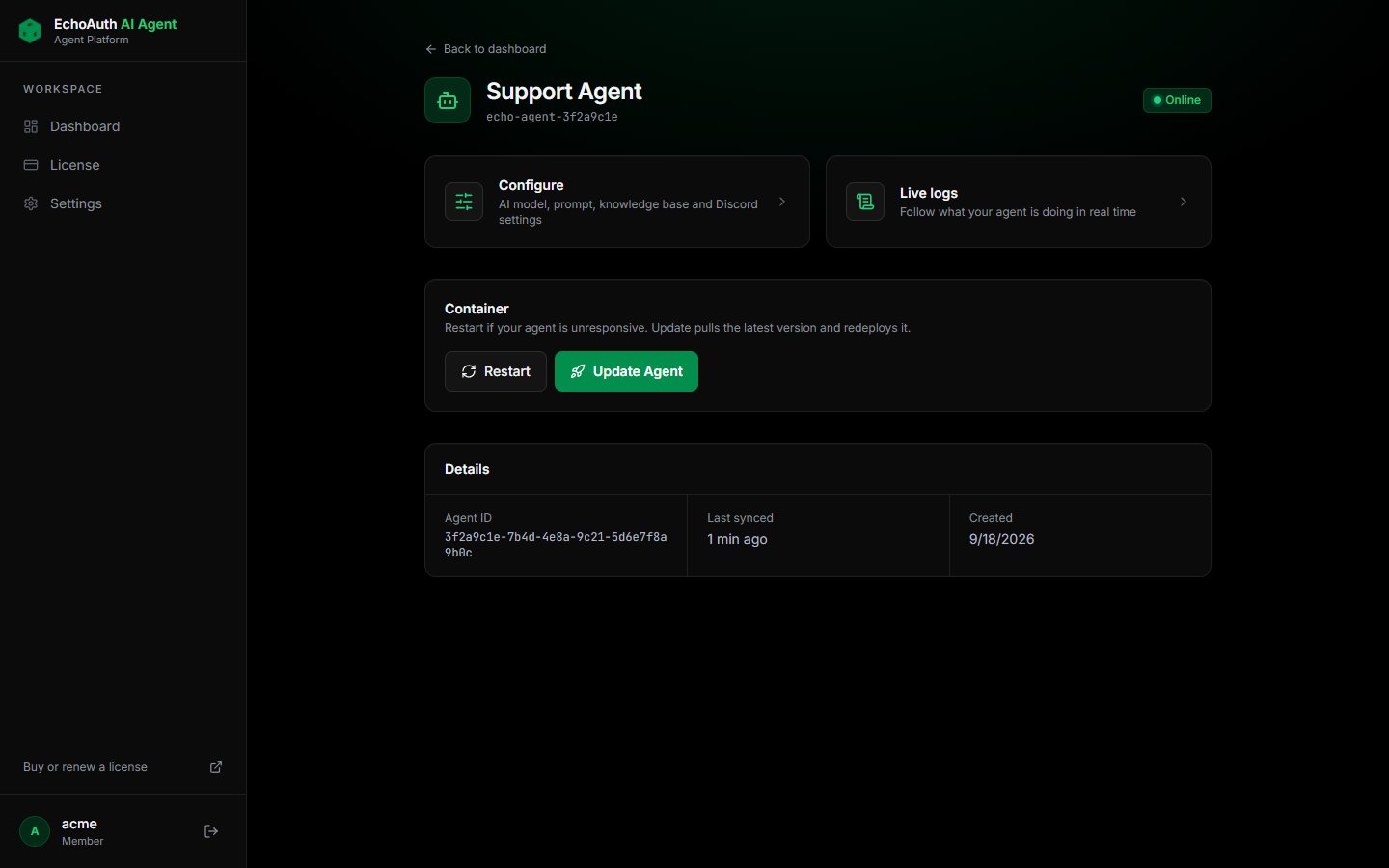

Agent page with Configure, Live logs, Restart and Update Agent

The agent page

​
2. Create your Discord bot

Your agent answers through a Discord bot that belongs to you. Create one in the Discord Developer Portal.
1

Create an application

Open the Discord Developer Portal and click New Application. Name it after your support agent, for example “Acme Support”.
2

Turn on the Message Content intent

Go to Bot. Under Privileged Gateway Intents, turn on Message Content Intent and save.
Without this intent, the bot receives empty messages and never replies.
3

Copy the bot token

Still on Bot, click Reset Token and copy the token. You’ll paste it into the dashboard in the next section. Keep it private: anyone with the token can control your bot.
4

Invite the bot to your server

Go to OAuth2 → URL Generator. Tick the scopes bot and applications.commands, then these bot permissions:
  • View Channels
  • Send Messages
  • Read Message History
  • Embed Links
  • Attach Files
Open the generated URL and add the bot to your server.
5

Give the bot access to your ticket category

Make sure the bot’s role can see the category your ticket channels are created in. If it can’t see the channel, it can’t answer.

​
3. Add your keys

Create an API key at openrouter.ai/keys and add some credit to your OpenRouter account. The vision model is free, but the chat and embedding models are paid per use. Then, on your agent page, click Configure and open the API Keys tab.

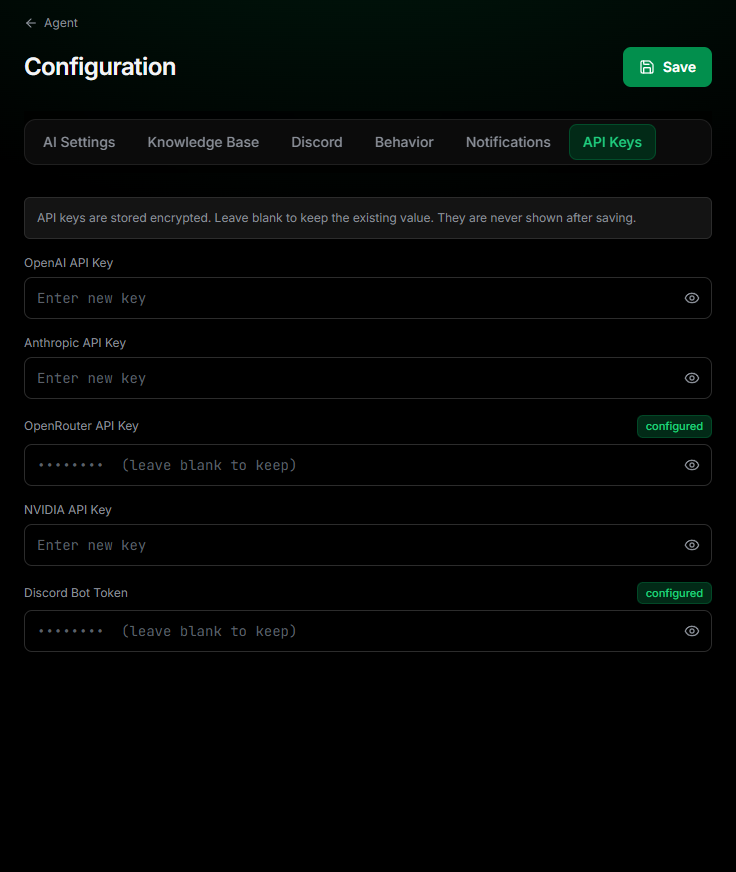

API Keys tab showing the OpenRouter API key and Discord bot token marked as configured

The API Keys tab, with the OpenRouter key and Discord bot token configured

  1. Paste your key into OpenRouter API Key.
  2. Paste your Discord Bot Token.
  3. Click Save.
You can leave the OpenAI, Anthropic and NVIDIA fields empty. Keys are stored encrypted and are never shown again after saving. A configured badge confirms that a key is set.

​
4. Choose your AI models

Open the AI Settings tab. The agent uses three models. Set all three to OpenRouter and pick the recommended models:

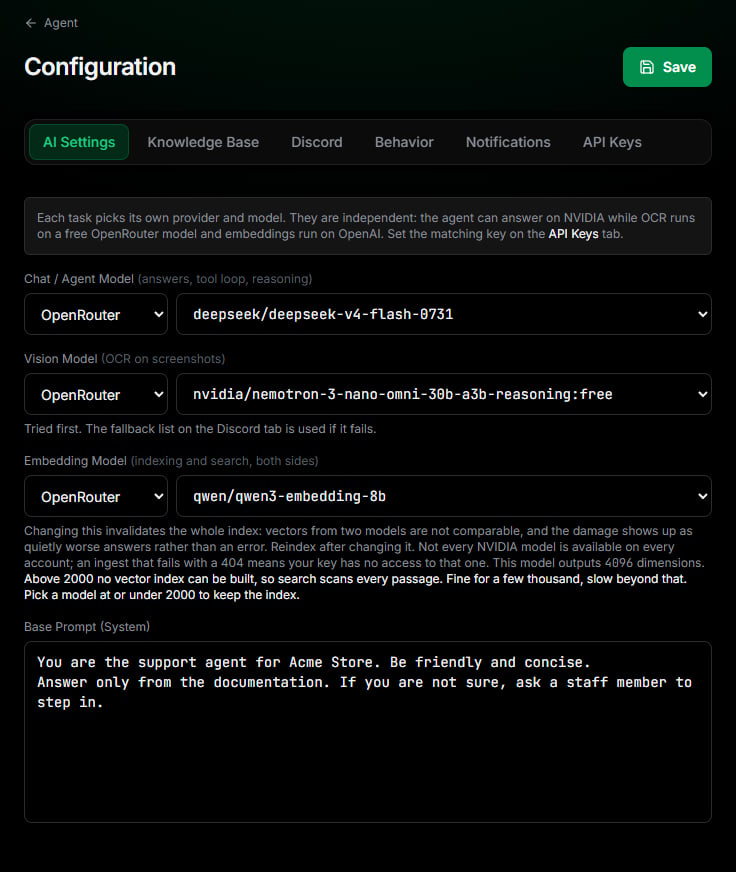

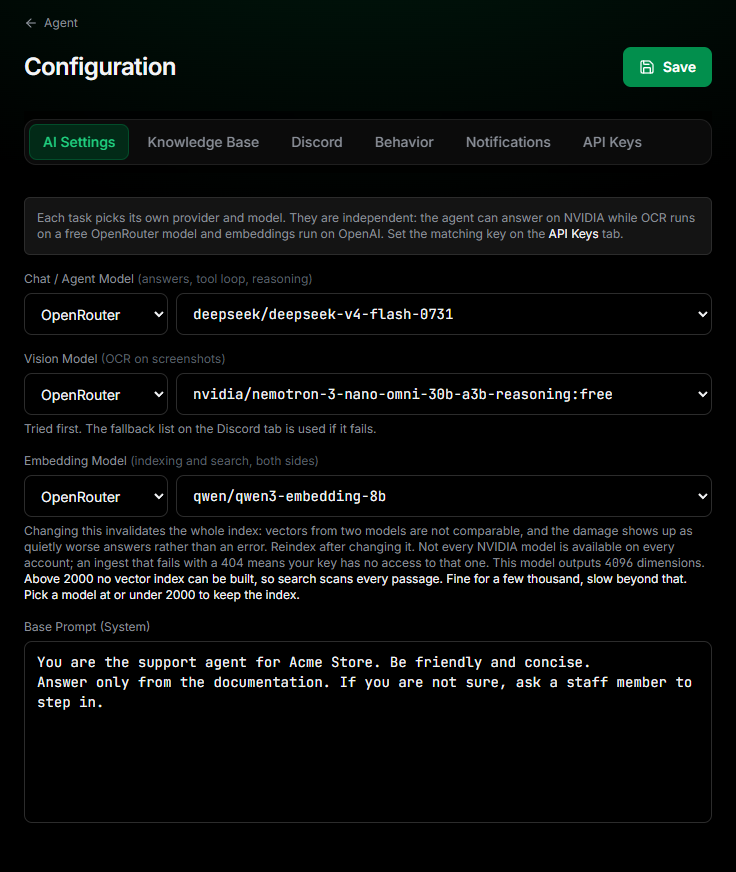

AI Settings tab with OpenRouter selected for chat, vision and embedding models

The AI Settings tab with the recommended OpenRouter models

Under the embedding model, the dashboard warns that it’s above 2000 dimensions. That’s expected for qwen/qwen3-embedding-8b. Search still works: it checks every passage instead of using an index, which stays fast for a knowledge base of a few thousand passages.
Then write your Base Prompt. This is the agent’s standing instructions: who it works for, the tone to use, and what it should never do. For example:
Pick your embedding model before you index anything. Changing it later makes the existing index unusable until you rebuild it.

​
5. Connect it to your tickets

Open the Discord tab. These settings tell the agent where to answer and who counts as staff.

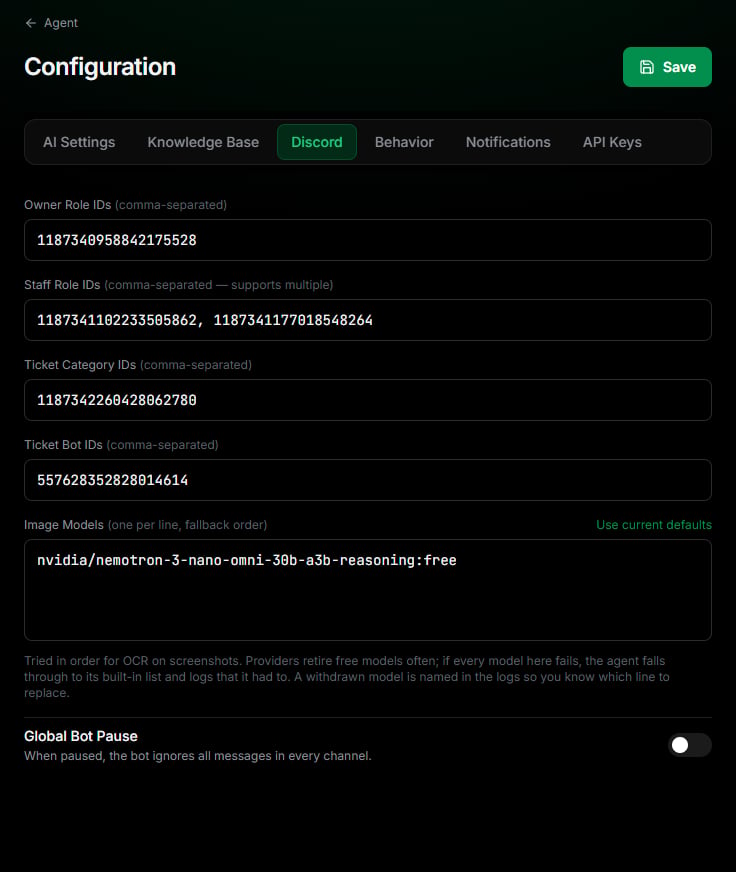

Discord tab with owner roles, staff roles, ticket category IDs, ticket bot IDs and image models

The Discord tab

To copy IDs, turn on Developer Mode in Discord under User Settings → Advanced. Then right-click a role, category or user and choose Copy ID.
Roles that can use every slash command, including /pause_bot and /edit_base. Separate several IDs with commas.
Your support team’s roles. When a staff member writes in a ticket, the agent steps back and stays quiet in that ticket. To bring it back, mention the bot in the ticket or use /restart there.
The categories your ticket channels are created in. The agent only answers inside these categories.
The user ID of your ticket bot, such as Ticket Tool or SellAuth Tickets. The agent ignores other bots, so add yours here to let the agent read the ticket’s opening message.
Backup vision models, one per line, tried in order if the vision model from AI Settings fails. Put this fallbacks:
nvidia/nemotron-3-nano-omni-30b-a3b-reasoning:free
google/gemma-4-31b-it:free
google/gemma-4-26b-a4b-it:free
thinkingmachines/inkling-small:free
dots-studio/dots-3-note-preview:free
Click Save.

​
6. Give the agent your documentation

Open the Knowledge Base tab. The agent answers from two sources, and you can use either or both.

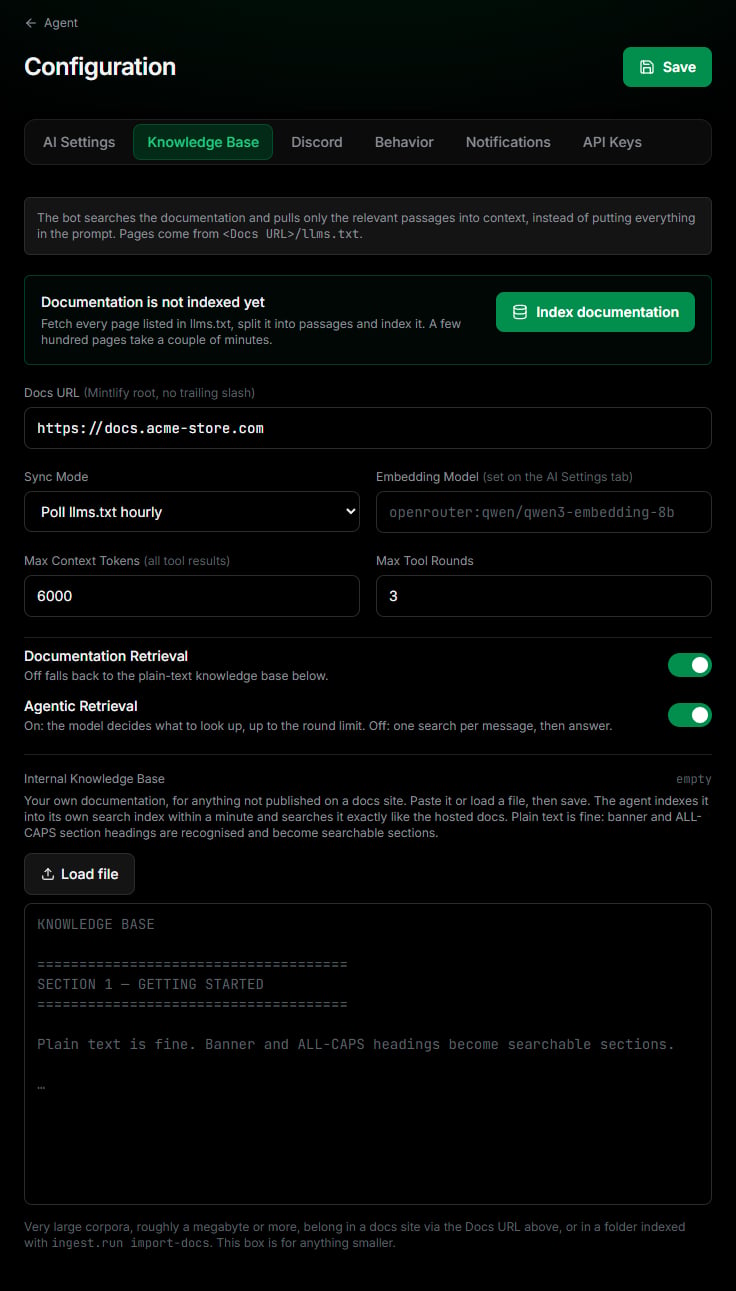

Knowledge Base tab with the Index documentation button, Docs URL and internal knowledge base

The Knowledge Base tab

Use this if your documentation is published on Mintlify.
  1. Enter your Docs URL, for example https://docs.acme-store.com, without a trailing slash. The site must serve /llms.txt, which Mintlify does automatically.
  2. Click Save, then go to your agent page and click Update Agent.
  3. Back on this tab, click Index documentation. A few hundred pages take a couple of minutes, and you can leave the page while it runs.
With Sync Mode set to Poll llms.txt hourly, the agent checks your docs every hour and re-indexes only the pages that changed.
Leave Documentation Retrieval and Agentic Retrieval on. With retrieval on, the agent looks up only the passages relevant to each question instead of reading everything every time.

​
7. Set reply timing and escalation

Open the Behavior tab.

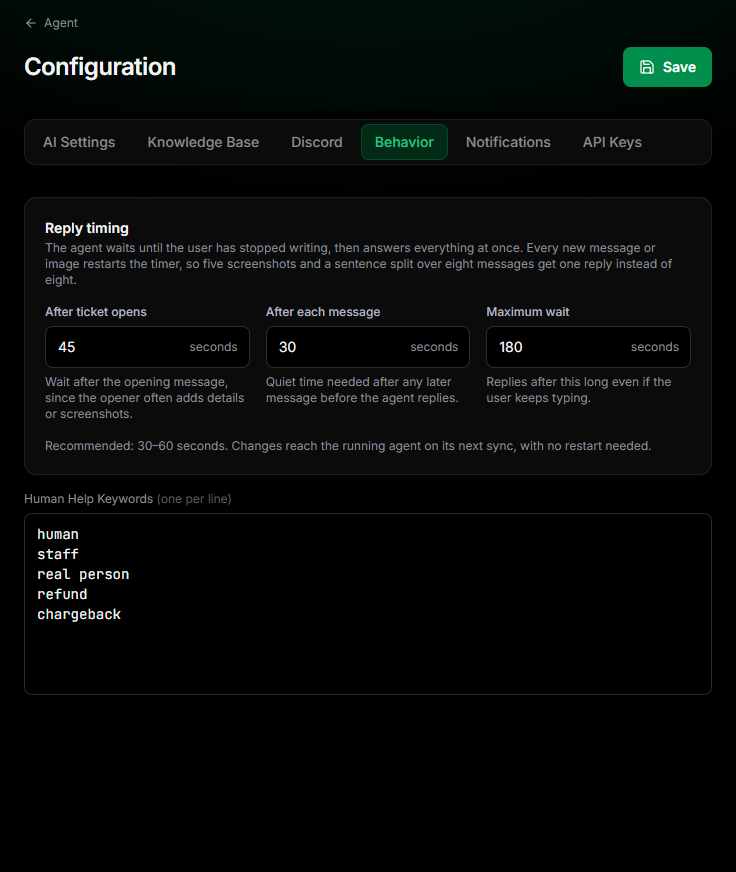

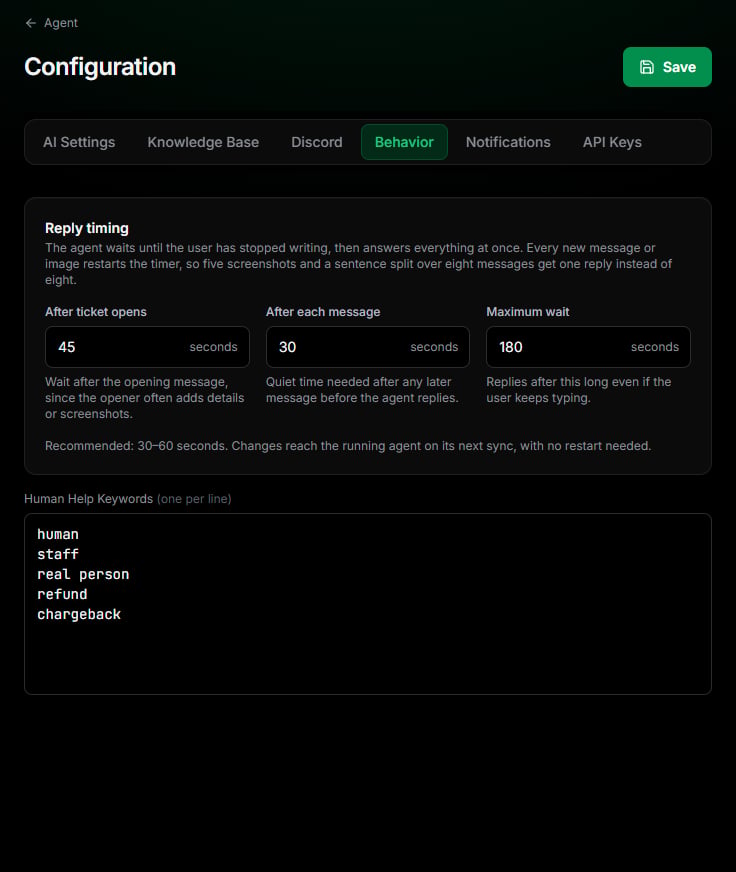

Behavior tab with reply timing and human help keywords

The Behavior tab

The agent waits until the customer has stopped typing, then answers everything in one reply. Each new message restarts the timer. Under Human Help Keywords, list words that should hand the ticket to your team, one per line. For example refund, chargeback or real person.

​
8. Get alerts (optional)

Open the Notifications tab and paste the ID of a private staff channel. The agent posts there when your license is about to expire and when an AI provider rejects your key or runs out of quota.

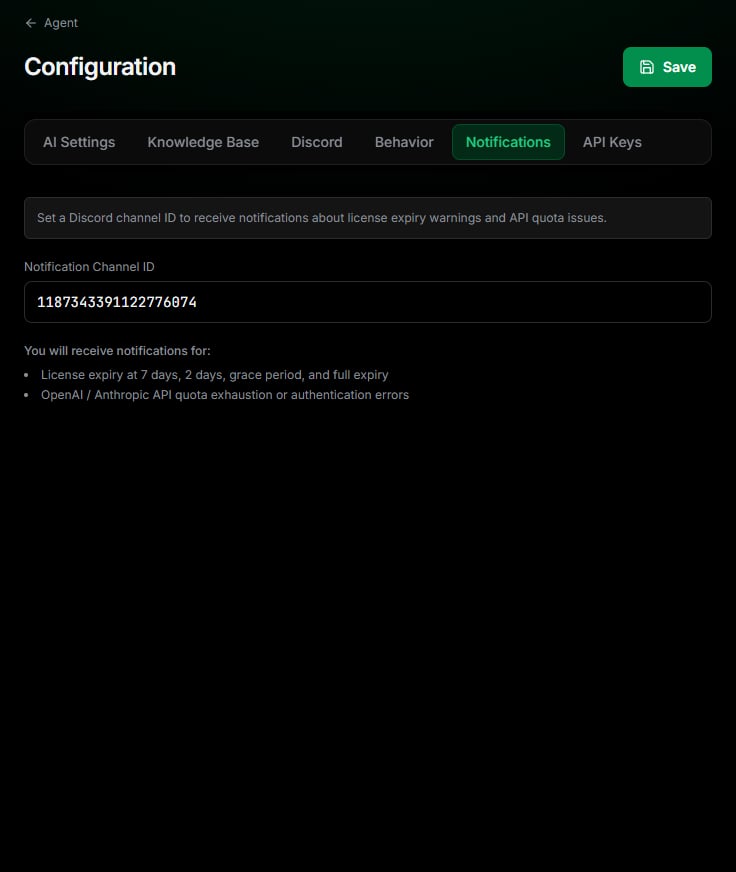

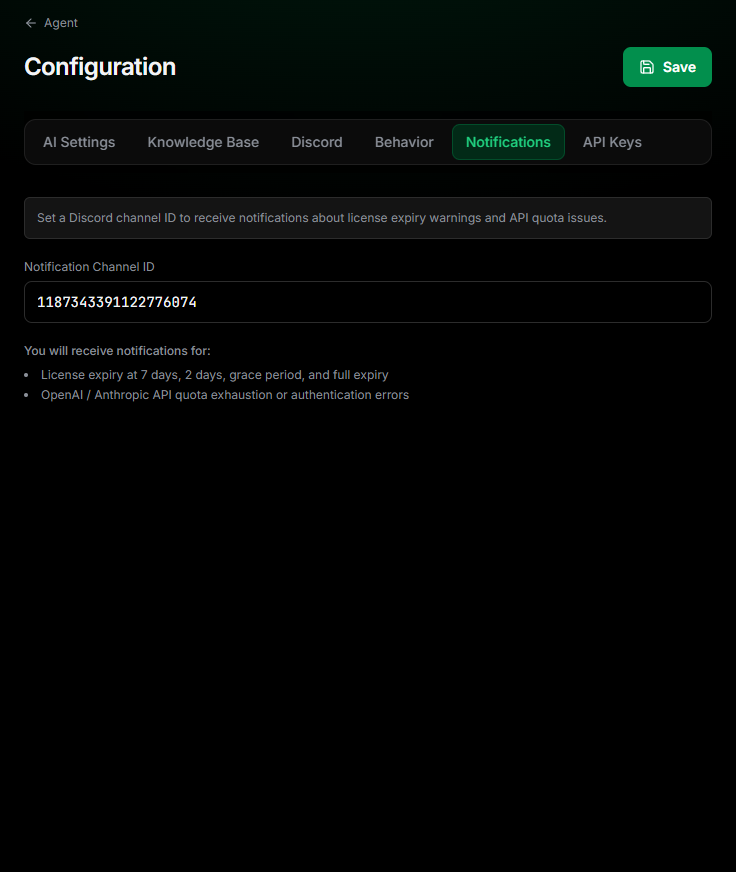

Notifications tab with the notification channel ID

The Notifications tab

​
9. Start the agent

Go back to your agent page and click Update Agent. This redeploys the agent with your bot token, docs URL and embedding model. The output appears below the button while it runs.
Most settings reach the running agent within about a minute, with no redeploy. You only need Update Agent after changing the Discord Bot Token, Docs URL, Embedding Model or Sync Mode.
To check that everything works:
  1. Open a test ticket in your server and ask a question your docs answer.
  2. Open Live logs on your agent page and watch the agent receive the message, search your docs and reply.

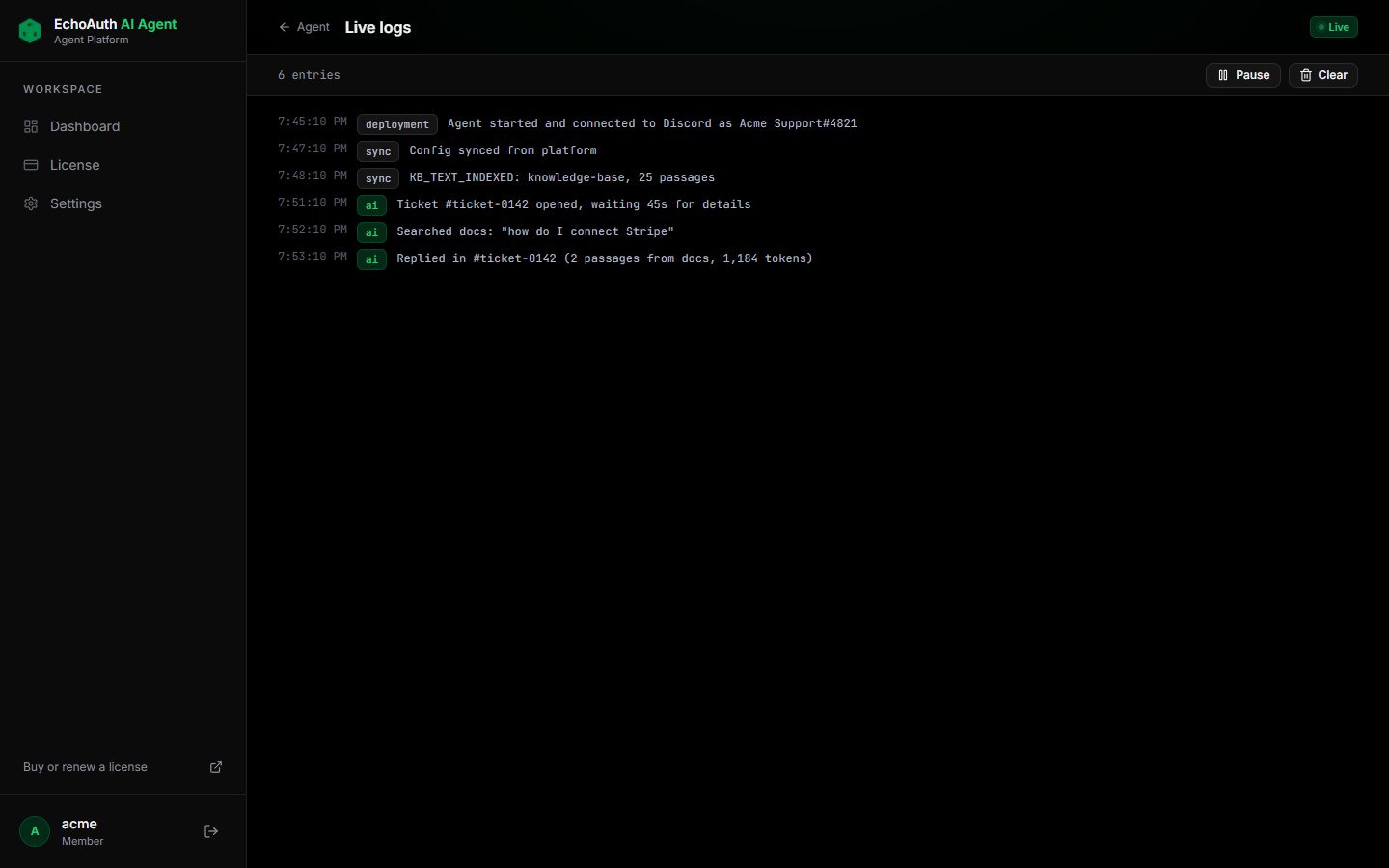

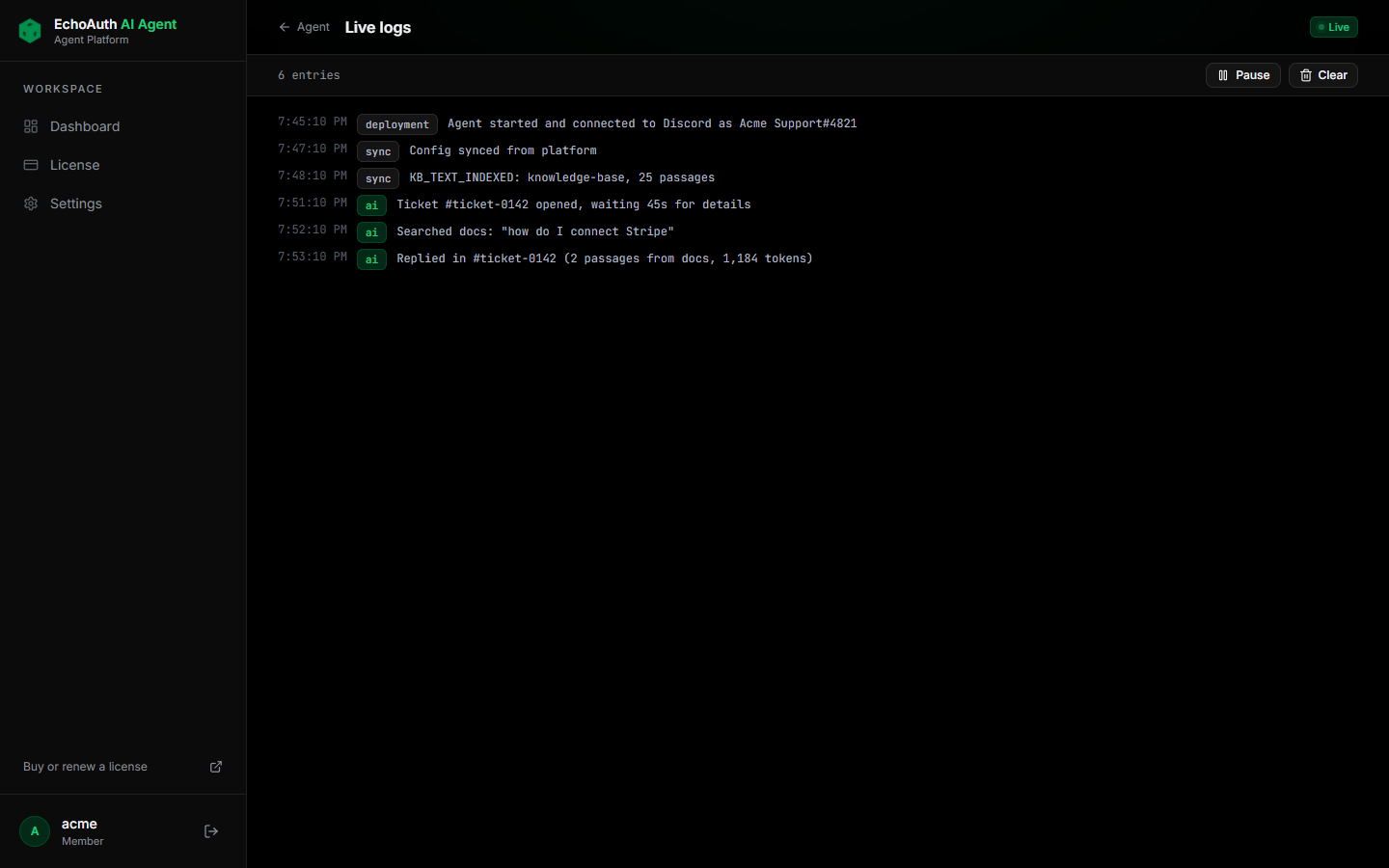

Live logs showing the agent start, sync, search the docs and reply in a ticket

Live logs

The status badge on your agent reads Online when it is running.

​
Slash commands

Once the agent is in your server, owners and staff can control it from Discord. You can also pause the agent from the dashboard with Global Bot Pause on the Discord tab.

​
Keep your license active

Your agent stays online while your license is active. The License page shows the days left and your expiry date.

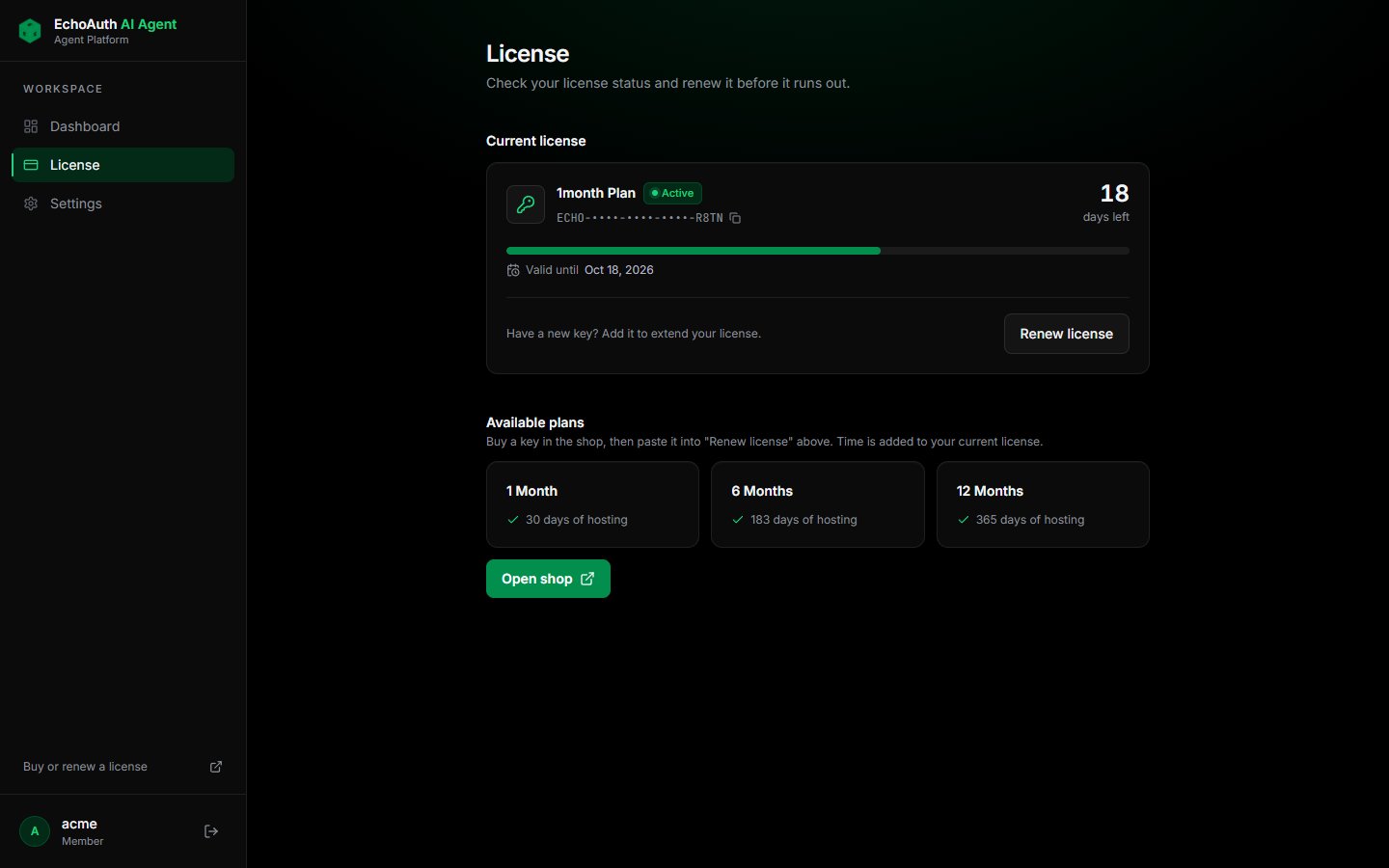

License page with status, days remaining and available plans

The License page

To renew, buy a new key in the shop, click Renew license and paste the key. The time is added to your current license.

​
Troubleshooting

  • Check that Message Content Intent is on in the Discord Developer Portal.
  • Check that the ticket’s category ID is in Ticket Category IDs.
  • Check that the bot can see and send messages in that category.
  • Check that a staff member hasn’t already written in the ticket. Mention the bot or use /restart to bring it back.
  • Check that Global Bot Pause is off.
Add your ticket bot’s user ID to Ticket Bot IDs on the Discord tab.
Open the Knowledge Base tab. If it says Documentation is not indexed yet, click Index documentation. If it says The index does not match the embedding model, click Clear and rebuild the index, or set the embedding model back to the one shown and save.
Check that your OpenRouter account has credit and that the key on the API Keys tab is still valid. Free models such as the vision model can be rate-limited at busy times; the agent then falls back to the next model in Image Models.
Open Live logs and look for errors, for example an invalid key or exhausted credit. Then click Restart on the agent page. If that doesn’t help, click Update Agent.
